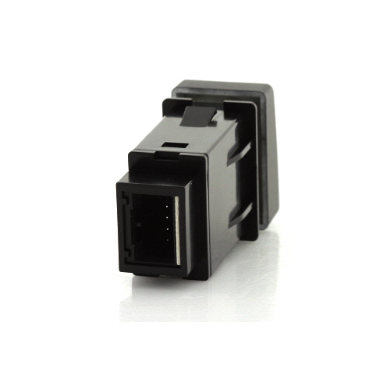

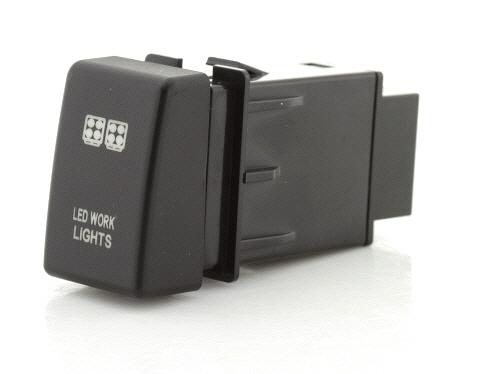

OE On/Off Push Button LED WORK LIGHTS Suit Isuzu D Max, Holden Colorado

The OE ON / OFF Push Button 12V OEM Style Switches are ideal for the customer who does not want to modify the vehicles dash. Most vehicles already have an allocated dash blank/ switch hole space available for fitting more switches and they are normally covered by a simple blanking plate. The advantage with the OE Push Button Switches is that they will match or look similar to the existing switches already fitted in the vehicle and save the installer unnecessary time wasted drilling further holes. With LED Illumination and a symbol denoting the exact lighting application installed, they provide a clean and professional finish to the installation for your driving lights or lightbars.

Includes universal loom

Symbol:
LED Work Lights

Application:
Holden Colorado 06/2012-
Isuzu D-MAX & MU-X 6/2012 - 8/2016

Mounting Opening: 34mm x 22mm
Amps: 3 Amps
Single Pole, Single Throw (SPST)

Wiring Codes
Black = Earth
Green = Relay
Red = Dash Lights
Yellow = Supply (+)

ALL SWITCH LOADS MUST BE WIRED THROUGH A FUSED RELAY
