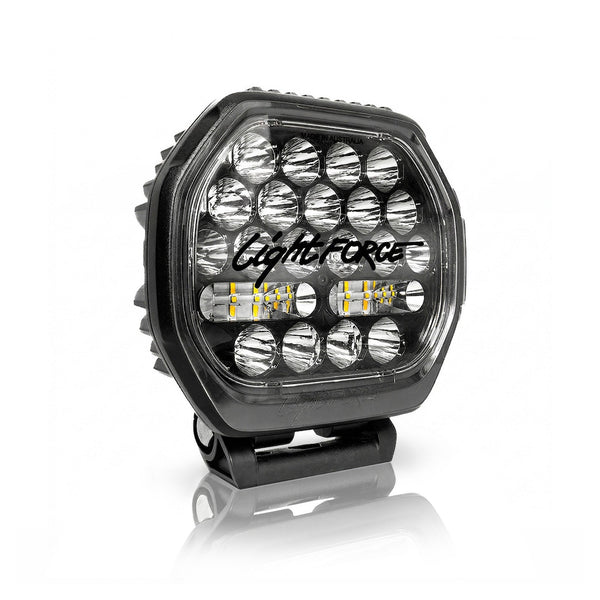

BEAST 190mm LED Driving Light (Single) - Includes 1 x BEAST Driving Light, Clear Spot Filter

The new standard for modern 4WD builds — BEAST performance in a body that actually fits a current ute.

Bar space on a next-gen ute is tight, airflow to the radiator matters, and a 230 mm light does not always clear the bodywork. The BEAST 190 was built for exactly that problem: 80 mm deep, with a reversible mount that gives you options most lights this bright do not, and it still reaches 1 lux at 1,260 m.

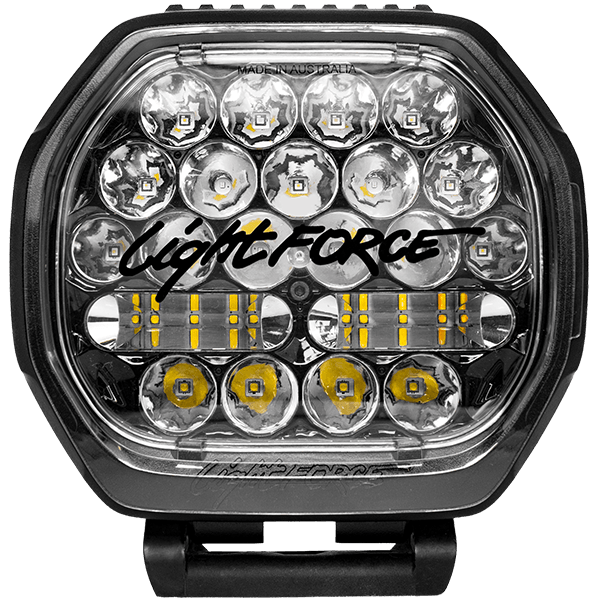

Australian designed, tested and built, with 25 Osram LEDs behind a combination reflector and a daytime running light function built in. Photometric testing is NATA accredited, carried out independently by Photometric Solutions International — the beam figures are measured, not marketing.

Boasting

• Three beam modes switched from the driver's seat
• 1 lux at 1,260 m in BEAST mode — from a 190 mm light
• 13,544 effective lumens in BEAST mode
• 25 Osram LEDs in a combination reflector
• 80 mm slimline footprint with a reversible mounting bracket
• Daytime running light function and thermal overload protection

Three modes, one switch

Each mode is a genuinely different beam, not a dimmer setting. Every shot below was taken on the same bush track, starting with the vehicle's own high beams for reference.

Spot — 1 lux at 1,195 m, 64 m wide

The long-distance mode. Open road and straight gravel, with all the energy down the centre.

Flood — 1 lux at 496 m, 129 m wide

Twice the width, and an impressive 160 degrees of peripheral vision. For winding roads, bush tracks, and dust or fog where reach is limited by the air rather than the light.

BEAST — 1 lux at 1,260 m, 142 m wide

Everything at once: the widest spread of the three and the longest reach. The mode you switch to when the road ahead matters.

How the switching works

Press the top of the switch to power on. The lower half toggles spot and flood. Hold it down for a second to drop into BEAST mode — all three without taking your eyes off the road.

Built for a modern build

Tested beyond extreme

• Water and dust — IP68/69K: dust, pressurised steam and 1.5 m submersion
• Chemicals and salt — salt spray and rust resistant, and resistant to petrol, brake fluid and paint solvents; materials referenced to UN ECE R149
• Temperature — −40 °C to 85 °C operation, surviving spikes to 125 °C
• Impact and vibration — IK16 rating, MIL-STD-810H vibration and shock testing
• Electrical endurance — 200,000 power cycles, EMI immunity referenced to UN ECE R10
• Longevity — 10,000 hours continuous running, 50,000 hour LED life

In the box

• 1 × BEAST 190 LED driving light
• 1 × reversible mounting bracket
• 1 × BEAST 190 clear filter
• 1 × Lightforce script sticker

Specifications

All beam figures are Lightforce's published measurements for a pair of lights.

Questions we get asked

190 or 230?
The 230 reaches further in spot — 1,497 m against 1,195 m for a pair. The 190 is lighter, 80 mm deep instead of considerably more, and actually has the higher output in BEAST mode (13,544 lm against 13,269 lm). On a modern ute where bar space and airflow are tight, the 190 is usually the better fit.

Is a wiring harness included?
No, and you do need one. We stock the universal BEAST harness plus ten vehicle-specific looms covering Hilux, Landcruiser 70 and 200 Series, D-MAX, BT-50 and MU-X.

Do I need the BEAST-specific harness?
Yes. The three switchable modes rely on it.

Is there a daytime running light mode?
Yes, DRL is built in.

Fitting

An LED driving light must be wired in accordance with Warrant of Fitness rules. Send us your rego and we will confirm the right loom before you order.
