BEAST 230mm and BEAST 190mm 12V Wiring Harness Kit - Suitable for Mazda MY25 BT-50 (Facelift Models)
Regular price $270.43
Unit price per
The BEAST loom for the MY25 facelift BT-50. Mazda revised the front-end wiring at the facelift, so this is a different part from the loom that suits 2020 to 2024 trucks. Plug-and-play into the factory headlight circuit, no splicing, three-mode smart switch in a vehicle-specific dash adaptor.
Fits
- Mazda BT-50, MY25 facelift models
For an earlier third-generation BT-50 (MY2020–2024) use LFDLHBEAST-MBT50. If your truck is near the changeover, send us the rego and we will confirm it.

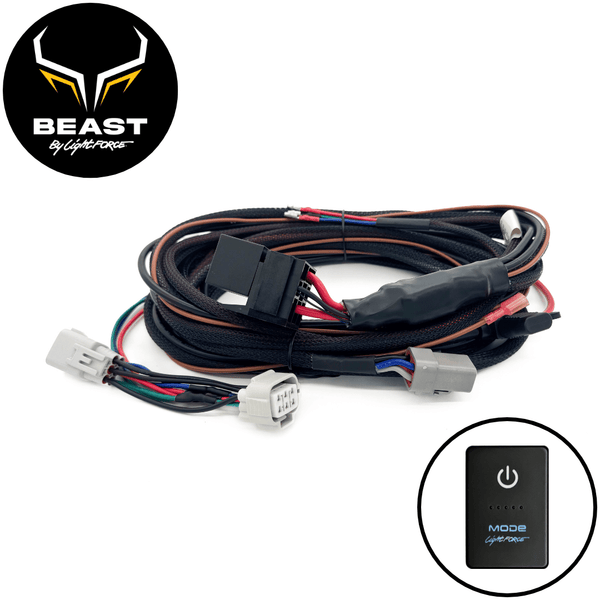

In the kit
- Driving light harness, including relay
- Three-mode smart rocker switch with vehicle adaptor
- Headlight adaptor to suit the vehicle
- Ignition pickup
- Cable ties and mounting hardware
- User instructions by QR code
Specifications
- 12 V operation
- 40 amp relay
- Positive or negative switching, controlled electronically
- Single moulded 8-pin connector, approximately 8 mm, plus an ignition wire through the firewall
A harness is required to install BEAST driving lights; the lights are sold separately. Auxiliary driving lights must be wired so they operate only with high beam.
