Venom E-Mark Professional Edition LED Driving Light 24V (Single)
Regular price $466.90
Unit price per
When performance and design collide. The 24 V E-Mark edition of the Venom, built to the European ECE standards — ECE R10 for electromagnetic interference and ECE R149 for photometry and materials. Same 150 mm body and 21 Lumileds LEDs as the Professional Edition, with output regulated to meet the approval.
Lightforce state that this edition “conforms to E-Mark, the EU standards for automotive performance and safety, allowing for legal road use in Europe and New Zealand”. If road compliance matters on your build, this is the Venom to buy — and the reason the range exists.
This is the 24 volt listing, for trucks, tractors, machinery and other 24 V systems. If your vehicle runs a 12 V system, buy the 12 V version instead.
Compare the two editions before you decide
As supplied this runs 27.5 W and reaches 1 lux at 636 m for a pair. The Professional Edition runs 75 W and reaches 939 m. Warranty is 1 year here, against 5 years on the Professional Edition. You are buying the approval, not the output.
Full power is available
The Lightforce Offroad Power Adaptor (LFPROPATCH) takes this light to the full 75 W — 4,407 effective lumens, 441,040 cd and 1 lux at 939 m for a pair with the spot filter. That is a 48 percent gain in reach for the price of a small part.
Worth understanding before you fit one: Lightforce supply the Offroad Power Adaptor for off-road use only. Running the light at full power puts it outside the E-Mark approval you bought it for, so it is a setting for private land and tracks rather than the open road.
The journey to new horizons begins here
Featuring Lumileds LEDs and a hard-wearing UV stable powder coat finish, for consistent performance in any condition. The IP68 and IP69K rating and a customisable LED spot reflector with a slimline design mean superior water and dust protection, while installation stays simple.
Key features
- Made in Australia
- ECE R10 — UNECE / E-Mark regulation for electromagnetic interference
- ECE R149 — UNECE / E-Mark regulation for photometry and materials
- 21 × high quality Lumileds LEDs for consistent performance
- LED spot reflector with the ability to use a combination modular filter
- 66 mm slim footprint that provides multiple mounting options
- Reverse polarity voltage protection and high-current waterproof connectors
- Thermal overload protection, preventing the light from overheating
- Hard-wearing UV stable powder coat finish
- IP68 and IP69K rated, with a Gore waterproof membrane against water and dust
- Pressure diecast aluminium housing and bezel for lightweight strength
- Impact and scratch resistant hard-coated polycarbonate lens — IK16 rated
Change the beam with a filter
The spot reflector takes a modular filter, so one light covers several jobs. The combo filter widens the spread for closer work and winding roads; the clear spot keeps everything concentrated down the centre.
Filters are available in clear spot, clear combo, crystal blue spot, amber spot, and a black cover for when the light is not in use.
Dimensions
Specifications — as supplied
| Supply voltage | 24 V |
|---|---|
| Diameter | 150 mm |
| LEDs | 21 × Lumileds |
| Wattage | 27.5 W |
| Effective lumens | 2,154 lm |
| Raw lumens | 2,856 lm |

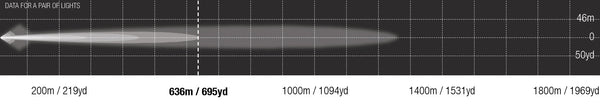

| 1 lux at | 636 m (pair) |
| Current draw | 1.4 A @ 27 V |
| Colour temperature | 5000 K |
| CRI | 70 |
| Ingress protection | IP68/69K, Gore membrane |
| Weight | 1.2 kg including bracket |
| Warranty | 1 year |
Specifications — with the Offroad Power Adaptor
| Wattage | 75 W |
|---|---|
| Effective lumens | 4,407 lm |
| Raw lumens | 8,820 lm |
| Candela | 441,040 cd |
| 1 lux at | 939 m (pair, with spot filter) |
In the box
- 1 × Venom E-Mark Edition LED driving light with fitted mounting bracket (LEDMB)
- 1 × spot filter
- 1 × 4-pin high-current waterproof harness adaptor
- Mounting hardware and user instructions
Optional accessories
- LFDLHTS3 — driving light harness with single switch and waterproof connectors, the matching loom for the E-Mark Genesis and Venom
- LFPROPATCH — Offroad Power Adaptor, for the full 75 W and 939 m
- ATNSG2 — anti-theft kit
- Filters in clear spot, clear combo, crystal blue spot, amber spot, and black cover
Frequently asked questions
Do I need the 24 V model?
Only if your vehicle runs a 24 V electrical system — trucks, tractors and machinery mostly. Utes and 4WDs are 12 V, so buy the 12 V listing.
Which edition should I buy?
If the lights need to be road compliant, buy this one. If the vehicle is for off-road or private land and you want maximum reach and the longer warranty, the Professional Edition is 75 W out of the box with a 5 year warranty.
Is the harness included?
No. The kit includes a 4-pin harness adaptor, but you still need the LFDLHTS3 loom to wire the light to a switch.
Why is the warranty only 1 year?
That is Lightforce's warranty on the E-Mark editions. The Professional Edition carries 5 years.
Fitting
An LED driving light must be wired in accordance with Warrant of Fitness rules. Send us your rego and we will confirm the right loom before you order.
