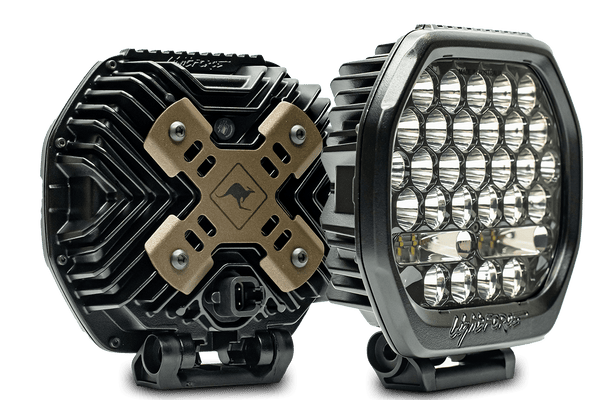

BEAST 230mm LED Driving Light Pack (Pair) - Includes 2 x BEAST Driving Lights and 2 x Clear Spot Filters
Regular price $1,454.06
Unit price per
Australian designed, engineered, tested and manufactured. The BEAST fuses military practicality and ruggedness with bold, unmistakable design styling.
Built to endure and to stay versatile in the most extreme driving conditions, the BEAST surpasses global test standards for durability and longevity — Lightforce consider it the most rigorously tested Australian-made driving light on the market. The detail that makes that claim concrete: the lens is rated to survive the impact of a 400 g rock at 100 km/h, or a 1 kg rock at 60 km/h.
And with its three-mode operation you switch between spot, flood and a special BEAST mode from the driver's seat — no stopping, no swapping filters, no compromise chosen in the driveway and regretted at 2am on gravel.
Boasting
- Improved peripheral vision, assisting a safe drive
- Warm white colour reduces glare and eye strain
- Consistent and precise beam patterns for any road type
- Slimline footprint and lightweight — close to half the weight of comparable driving lights
- Countless mounting options for a clean vehicle integration
- A hard-coated lens that is extremely impact resistant and durable
Evolve your driving experience and unleash the wild your way.
Change beam patterns with the push of a button
Three genuinely different beams, not a dimmer setting — and all three reached without taking your eyes off the road. Every shot below was taken on the same stretch of road, starting with the vehicle's own high beams for reference.
Spot — 1 lux at 1,497 m, 60 m wide
Tame your terrain. A tightly focused, concentrated beam for long-distance driving, when you want to see as far as light will physically carry.
Flood — 1 lux at 778 m, 140 m wide
Safety on winding roads. Around 160 degrees of peripheral vision, with a softer, more diffused spread that keeps glare down and visibility consistent as the road changes under you.
BEAST — 1 lux at 1,375 m, 140 m wide
The full width of flood with a central beam almost as strong as spot. Maximum total light output, for long-range vision and peripheral spread at the same time.
How the switching works
Press the top of the switch to power the lights on. Press the lower half to swap between spot and flood. Hold that lower half down for one second to trigger BEAST mode.
An unrivalled driving experience
Whether you are covering long distances or heading somewhere that does not have roads, the BEAST is built for performance without compromise. Reliability and precision are the point — a light you stop thinking about, because it simply does what it should every time you reach for the switch.
Beauty meets BEAST
Bold, rugged, evolved
Every component and every detail has been scrutinised rather than assumed. That is what separates a light that survives a product cycle from one that survives a decade on a farm ute.
Tested beyond extreme
Water-tight housing
- IP69K ingress protection
- Dust, pressurised steam, 1.5 m deep submersion
Chemical resistant
- IEC 60068-2-52 salt spray and rust resistant
- Chemical-resistant materials to UN ECE R149
- Survives petrol, brake fluid, MEK and paint solvents
- Non-hazardous substances
Withstands extreme conditions
- Runs safely from −40 °C to 70 °C
- Works through heat spikes to 125 °C, and when frozen solid
- Survives 150,000 power cycles
- IEC 60068-2-5 solar and UV resistant lens
- EMI immunity to UN ECE R10
High impact rating
- Survives IK16 rated impacts — estimated as a 400 g rock at 100 km/h, or 1 kg at 60 km/h
- Passes MIL-STD-810H 514.4 vibration and shock testing, the US military standard for off-road vehicles
- ASTM D3359 tough coating scratch test
Proven beyond standards
- Lasts 10,000 hours of continuous running
- LEDs rated to 50,000 hours
- Low radio emissions to CISPR25
- RoHS compliant materials
- RCM, CE and FTC compliant — AU/NZ, EU and USA approvals respectively
Kit contents
- 2 × BEAST 230 three-mode LED driving lights
- 2 × BEAST clear filters
- 2 × reversible mounting brackets
Specifications
| Diameter | 230 mm |
|---|---|
| Number of LEDs | 36 |
| Beam type | 3 mode |
| 1 lux at | 1,497 m (pair) |
| Effective lumens | 10,275 / 7,826 / 13,269 lm (spot / flood / BEAST) |
| Raw lumens | 16,496 / 11,025 / 19,965 lm |
| Candela | 1,105,100 / 302,740 / 945,300 cd |
| Wattage | 172 W |
| Current draw | 11.2 / 6.5 / 13 A @ 13.2 V |
| Voltage | 11 V – 32 V |
| Colour temperature | 5700 K |
| CRI | 70 |
| Ingress protection | IP68/69K |
| Weight | 2.2 kg per light |
| LED lifespan | 50,000 hours |
| Warranty | 5 years |
All beam figures are Lightforce's published measurements for a pair of lights.
Frequently asked questions
How do I switch beam modes?
Power the lights on by pressing the top section of the switch. Press the lower half to swap between spot and flood. Hold the switch down for one second to trigger BEAST mode.
When should I use each mode?
Spot suits long-distance driving where you need to see as far down the road as possible. Flood is best for consistent visibility on winding roads. BEAST uses all available power for the greatest total output — the same wide spread as flood, with a central beam almost as strong as spot.
Is the wiring harness included?
No, and you do need one. We stock the universal BEAST harness as well as ten vehicle-specific looms covering Hilux, Landcruiser 70 and 200 Series, D-MAX, BT-50 and MU-X — so unlike Lightforce's own range, the vehicle-specific loom for your truck is most likely on the shelf here now.
Do I need the BEAST-specific harness?
Yes. The three switchable modes rely on it, and it is required for correct operation.
How do I run three lights?
You need two BEAST universal harnesses. One harness will not run three lights safely.
Does it have a DRL mode?
Yes, a daylight running option is included.
Fitting
An LED driving light must be wired in accordance with Warrant of Fitness rules. If you are not certain which loom suits your vehicle, send us your rego and we will confirm it before you order.
