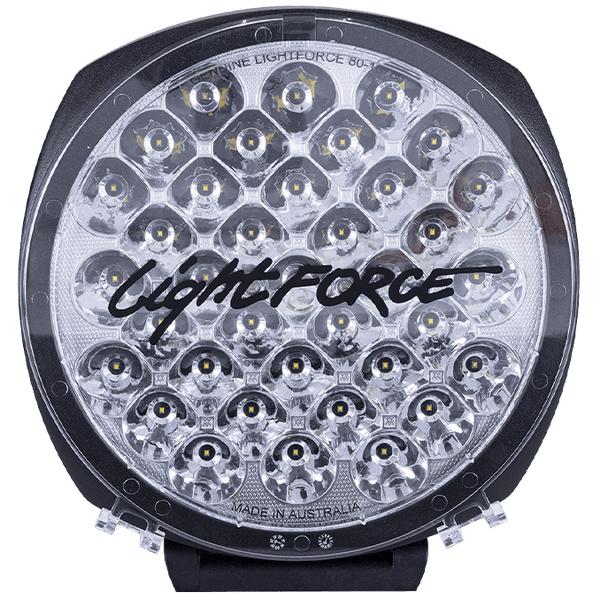

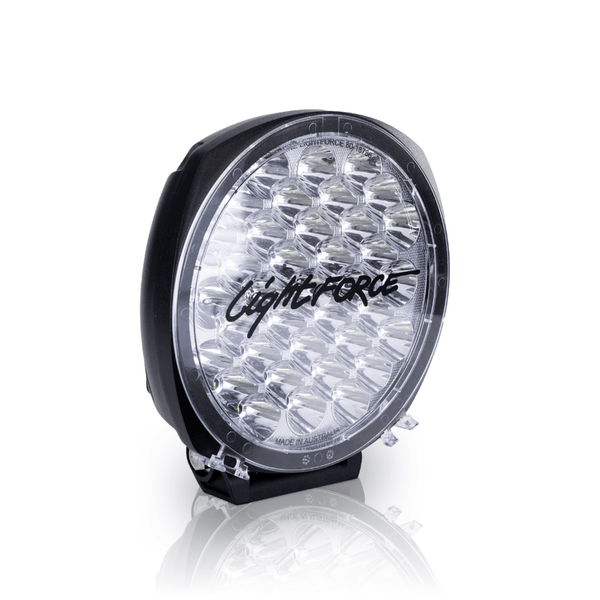

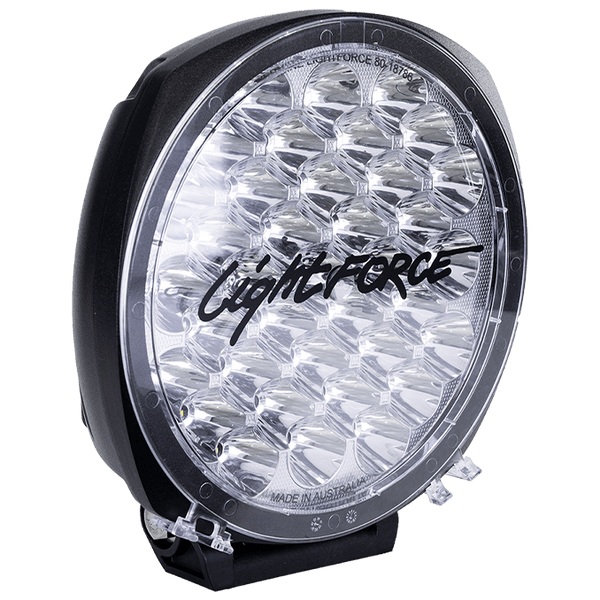

Genesis Professional Edition LED Driving Light (Single)
Regular price $492.37
Unit price per
Unrivalled brightness with Genesis. 140 W, 37 Lumileds LEDs and an industry-leading 1,119 m of reach. This is the biggest and the longest-throwing driving light Lightforce build, and the Professional Edition is the full-power version — no adaptor needed, 5 year warranty.

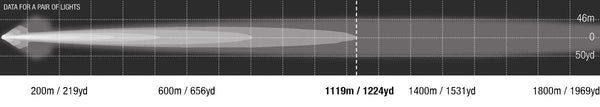

1,119 m on spot, 763 m on combo
The filter you fit decides the beam. The clear spot filter included in the kit concentrates everything down the centre for maximum reach; swap to the combo filter and you trade distance for a far wider spread.
Three stage operation
Full intensity, a daytime position and a nighttime position, so the light earns its place on the bar during the day instead of sitting dark until you need it.
Key features
- Made in Australia
- 140 W LED, 15,540 raw lumens, for industry-leading output
- 37 × high quality Lumileds LEDs for consistent performance
- LED spot reflector with the ability to use a combination modular filter
- 73 mm slim footprint that provides multiple mounting options
- Three stage operation — full intensity, daytime, or nighttime positioning
- Reverse polarity voltage protection and high-current waterproof connectors
- CISPR25 compliant, reduced radio frequency interference technology
- Thermal overload protection, preventing the light from overheating
- Hard-wearing UV stable powder coat finish
- IP68 and IP69K rated, with a Gore waterproof membrane against water and dust

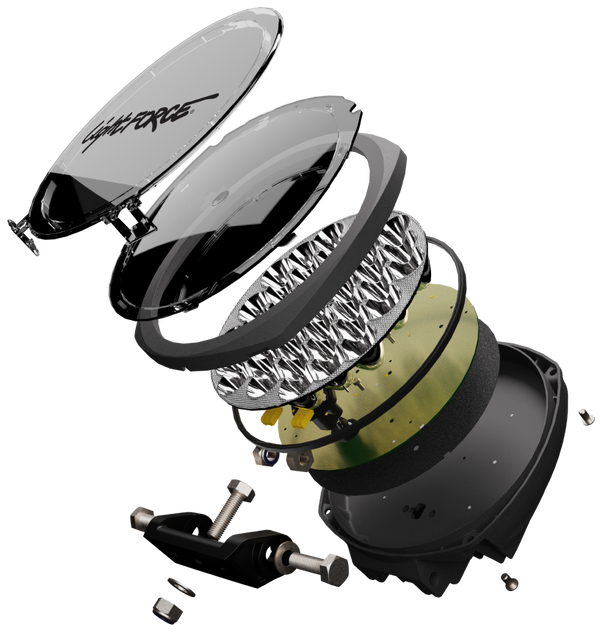

- Pressure diecast aluminium housing and bezel for lightweight strength
- Impact-resistant polycarbonate filter for added protection
- 5 year warranty
Change the beam with a filter
Filters come in clear, crystal blue and yellow, each in spot, combo and wide patterns, plus a black cover for when the light is not in use.

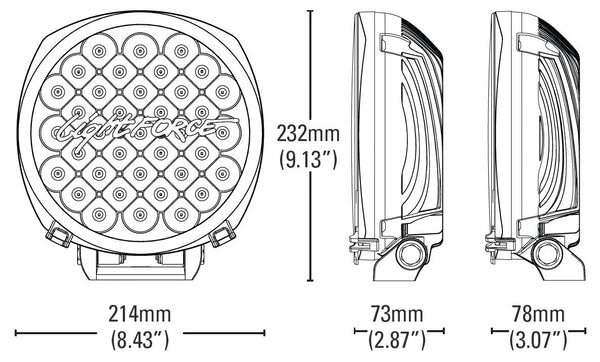

Dimensions
Specifications
| Diameter | 214 mm measured (sold as 210 mm) |
|---|---|
| LEDs | 37 × Lumileds |
| Wattage | 140 W |
| Effective lumens | 9,030 lm |
| Raw lumens | 15,540 lm |
| 1 lux at | 1,119 m (pair, spot filter) — 763 m with the combo filter |
| Current draw | 11.3 A @ 13.2 V |
| Voltage range | 10 V – 32 V |
| Colour temperature | 5000 K |
| CRI | 70 |
| Ingress protection | IP68/69K, Gore membrane |
| Weight | 2.4 kg including bracket |
| Warranty | 5 years |
In the box
- 1 × Genesis Professional Edition LED driving light
- 1 × Genesis clear spot filter
- 1 × 4-pin high-current waterproof harness adaptor
- Mounting hardware and user instructions
Optional accessories
- LFDLHTS3 — driving light harness with single switch and waterproof connectors
- ATNSG2 — anti-theft kit
- DL210TSB — Genesis Xtreme top stay bracket
- Filters in clear, crystal blue and yellow — each in spot, combo and wide — plus a black cover
Frequently asked questions
Professional or E-Mark edition?
This Professional Edition is the one to buy unless you specifically need the European approval. It runs 140 W out of the box, reaches 1,119 m, carries a 5 year warranty, and costs less. The E-Mark edition is regulated down to 34 W and 640 m with a 1 year warranty, and is the one Lightforce describe as compliant for road use in New Zealand and Europe.
Genesis or Venom?
The Genesis is 214 mm and reaches 1,119 m; the Venom is 150 mm and reaches 939 m. If the bar has room, the Genesis is the longest-throwing light in the range. If bar space is tight, or you are running more than two lights, the Venom gives you far more mounting freedom. At 2.4 kg each the Genesis also wants a solid mount.
Is a harness included?
No. The kit includes a 4-pin harness adaptor, but you still need a loom to wire the light to a switch. The LFDLHTS3 is the matching single-switch harness.

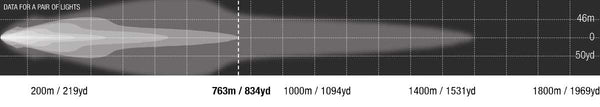

What does the combo filter change?
It widens the beam considerably at the cost of reach — 1 lux at 763 m instead of 1,119 m. Most people run spot on one pair and combo on another, or swap by trip.
Fitting
An LED driving light must be wired in accordance with Warrant of Fitness rules. Send us your rego and we will confirm the right loom before you order.
