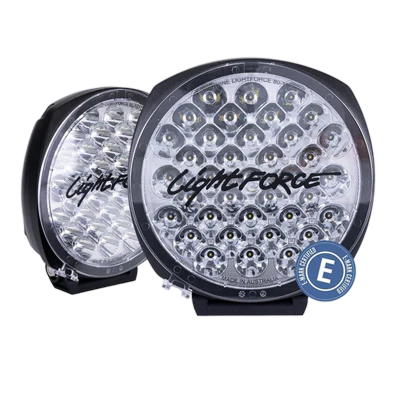

Genesis E-Mark Professional Edition LED Driving Light 24V (Single)
Regular price $642.75
Unit price per
Discover new horizons. The Genesis is the biggest driving light Lightforce build — 214 mm across, 37 Lumileds LEDs — and this is the edition that is built to the European ECE standards: ECE R10 for electromagnetic interference and ECE R149 for photometry and materials.
Lightforce describe it plainly: building on the Genesis Professional Edition, this edition “is now fully compliant for legal road use in both New Zealand and Europe”. If road compliance matters on your build, this is the Genesis to buy — and the reason the E-Mark range exists.
This is the 24 volt listing, for trucks, tractors, machinery and other 24 V systems. If your vehicle runs a 12 V system, buy the 12 V version instead.
Compare the two editions before you decide

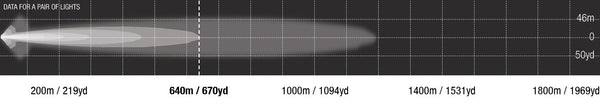

As supplied this runs 34 W and reaches 1 lux at 640 m for a pair. The Professional Edition runs 140 W and reaches 1,119 m. Warranty is 1 year here, against 5 years on the Professional Edition. You are buying the approval, not the output.
Full power is available

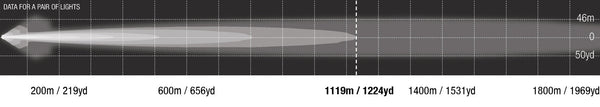

The Lightforce Offroad Power Adaptor (LFPROPATCH) takes this light to the full 140 W — 9,030 effective lumens, 626,081 cd and 1 lux at 1,119 m for a pair with the spot filter. That is a 75 percent gain in reach for the price of a small part.
Worth understanding before you fit one: Lightforce supply the Offroad Power Adaptor for off-road use only. Running the light at full power puts it outside the E-Mark approval you bought it for, so it is a setting for private land and tracks rather than the open road.
Unleash your true potential
Expertly built and designed in the heart of Australia, and put through rigorous testing for quality and reliability. Robust housing and a high lumen output let it withstand the harshest weather and the most demanding environments. It is also vibration tested, and the IP68 and IP69K rating covers submersion to 1 m and high-pressure water spray.
Key features
- Made in Australia
- ECE R10 — UNECE / E-Mark regulation for electromagnetic interference
- ECE R149 — UNECE / E-Mark regulation for photometry and materials
- 37 × high quality Lumileds LEDs for consistent performance
- LED spot reflector with the ability to use a combination modular filter
- 73 mm slim footprint that provides multiple mounting options
- Reverse polarity voltage protection and high-current waterproof connectors
- Thermal overload protection, preventing the light from overheating
- Hard-wearing UV stable powder coat finish
- IP68 and IP69K rated, with a Gore waterproof membrane against water and dust
- Pressure diecast aluminium housing and bezel for lightweight strength
- Impact and scratch resistant hard-coated polycarbonate lens — IK16 rated
Change the beam with a filter
The spot reflector takes a modular filter, so one light covers several jobs. Filters come in clear, crystal blue and yellow, each in spot, combo and wide patterns, plus a black cover for when the light is not in use.

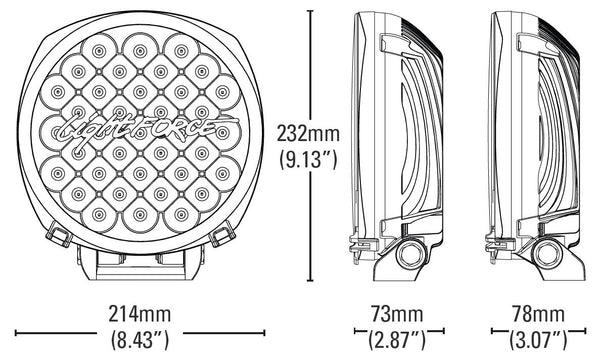

Dimensions
Specifications — as supplied
| Supply voltage | 24 V |
|---|---|
| Diameter | 214 mm measured (sold as 210 mm) |
| LEDs | 37 × Lumileds |
| Wattage | 34 W |
| Effective lumens | 2,637 lm |
| Raw lumens | 3,519 lm |
| 1 lux at | 640 m (pair) |
| Current draw | 1.3 A @ 27 V |
| Colour temperature | 5000 K |
| CRI | 70 |
| Ingress protection | IP68/69K, Gore membrane |
| Weight | 2.4 kg including bracket |
| Warranty | 1 year |
Specifications — with the Offroad Power Adaptor
| Wattage | 140 W |
|---|---|
| Effective lumens | 9,030 lm |
| Candela | 626,081 cd |
| 1 lux at | 1,119 m (pair, with spot filter) |
| Beam width at 1 lux | 134 m (pair, with combo filter) |
Lightforce publish different raw-lumen figures for the 140 W state across their own pages, so we have left that out rather than quote a number we cannot verify. Ask us and we will confirm it with Lightforce.
In the box
- 1 × Genesis E-Mark Edition LED driving light with fitted mounting bracket (LEDMB)
- 1 × spot filter
- 1 × 4-pin high-current waterproof harness adaptor
- Mounting hardware and user instructions
Optional accessories
- LFDLHTS3 — driving light harness with single switch and waterproof connectors, the matching loom for the E-Mark Genesis and Venom
- LFPROPATCH — Offroad Power Adaptor, for the full 140 W and 1,119 m
- ATNSG2 — anti-theft kit
- DL210TSB — Genesis Xtreme top stay bracket
- Filters in clear, crystal blue and yellow — each in spot, combo and wide — plus a black cover
Frequently asked questions
Do I need the 24 V model?
Only if your vehicle runs a 24 V electrical system — trucks, tractors and machinery mostly. Utes and 4WDs are 12 V, so buy the 12 V listing.
Which edition should I buy?
If the lights need to be road compliant, buy this one. If the vehicle is for off-road or private land and you want maximum reach and the longer warranty, the Professional Edition is 140 W out of the box with a 5 year warranty.
Genesis or Venom?
The Genesis is 214 mm and reaches further; the Venom is 150 mm and fits where the Genesis will not. Measure your bar first — a pair of Genesis needs real estate, and at 2.4 kg each they want a solid mount.
Is the harness included?
No. The kit includes a 4-pin harness adaptor, but you still need the LFDLHTS3 loom to wire the light to a switch.
Fitting
An LED driving light must be wired in accordance with Warrant of Fitness rules. Send us your rego and we will confirm the right loom before you order.
