BEAST 230mm and BEAST 190mm 12V Wiring Harness Kit - Suitable for Toyota Hilux 2015 - Current SR and below/2015 - 2019 SR5 and above
Regular price $270.43
Unit price per
The plug-and-play BEAST loom for the N80 Hilux. No splicing into the factory harness — it uses the vehicle's own headlight connector, and the three-mode smart switch drops into a Hilux-specific adaptor so it sits in the dash like it came from the factory. The switch backlight is colour-matched to the Hilux instrument lighting.
Fits (halogen globe models)
- H4 headlight — Workmate, SR, Rugged, 2015–2025
- HB3 headlight — SR5, Rogue, Rugged X, 2015–2019
If your Hilux has factory Bi-LED headlights — SR5, Rogue or GR Sport facelift models — you need the LFDLHBEAST-HLX20 loom instead, not this one. Not sure which you have? Send us your rego and we will check.

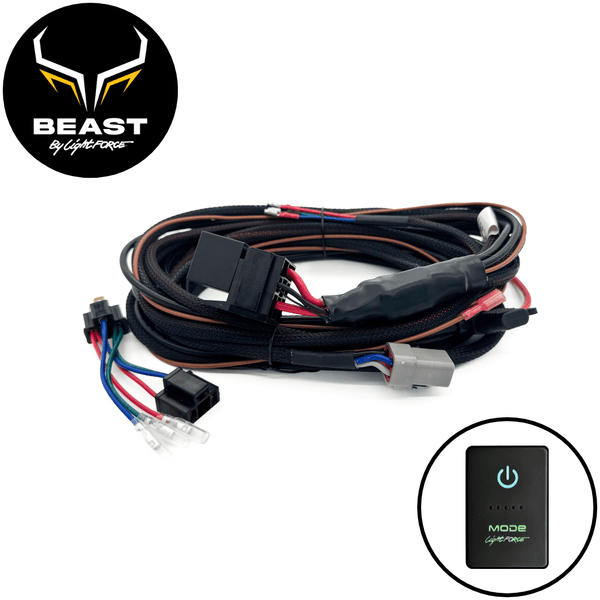

In the kit
- Driving light harness, including relay
- Three-mode smart rocker switch with Hilux adaptor
- HB3 headlight adaptor (model dependent)
- H4 headlight adaptor (model dependent)
- Hilux ignition pickup
- Cable ties and mounting hardware
- User instructions by QR code
Specifications
- 12 V operation
- 40 amp relay
- Positive or negative switching, controlled electronically
- Single moulded 8-pin connector, approximately 8 mm, plus an ignition wire — both pass through the firewall
A harness is required to install BEAST driving lights; the lights are sold separately. Auxiliary driving lights must be wired so they operate only with high beam.
