BEAST 230mm and BEAST 190mm 12V Wiring Harness Kit - Suitable for Toyota Landcruiser 200 Series (2012-2021)
Regular price $270.43
Unit price per

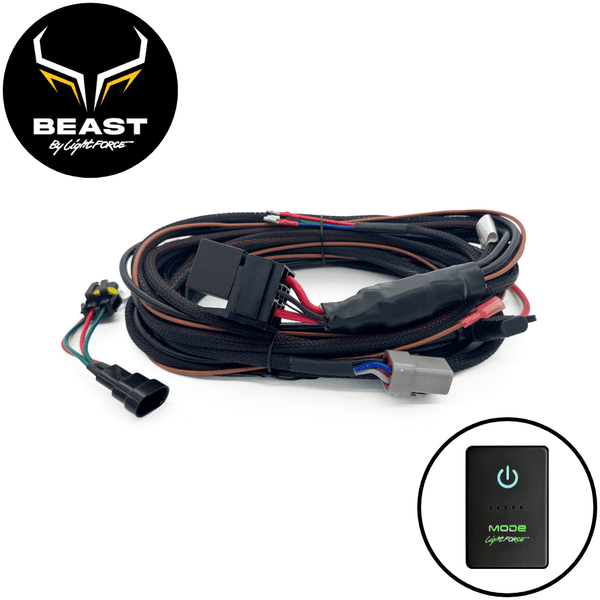

The BEAST loom for the 200 Series Landcruiser, 2012 to 2021. Plug-and-play into the factory headlight circuit with no splicing, and the three-mode smart switch mounts in a Toyota-specific adaptor with its backlight colour-matched to the dash.
Fits
- Toyota Landcruiser 200 Series, 2012–2021
In the kit
- Driving light harness, including relay
- Three-mode smart rocker switch with Toyota adaptor
- Headlight adaptor to suit the vehicle
- Ignition pickup
- Cable ties and mounting hardware
- User instructions by QR code
Specifications
- 12 V operation
- 40 amp relay
- Positive or negative switching, controlled electronically
- Single moulded 8-pin connector, approximately 8 mm, plus an ignition wire through the firewall
A harness is required to install BEAST driving lights; the lights are sold separately. Lightforce split the 200 Series into early and late looms, so if your build year sits near the boundary send us the rego and we will confirm which one fits. Auxiliary driving lights must be wired so they operate only with high beam.
