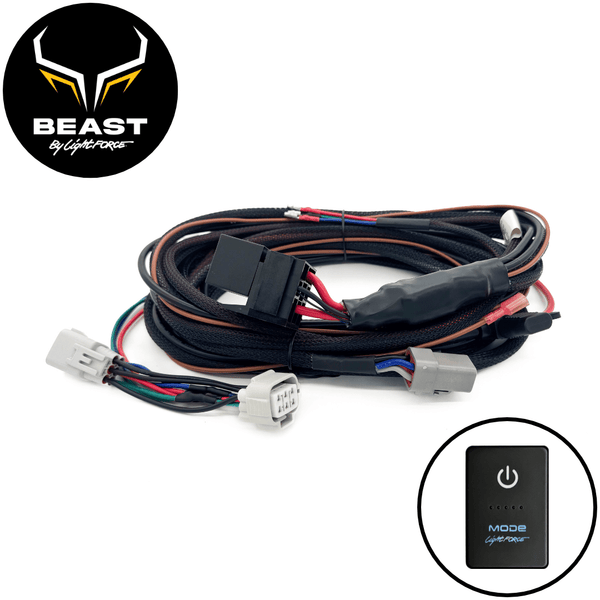

BEAST 230mm and BEAST 190mm 12V Wiring Harness Kit - Suitable for 3rd GEN BT-50 MY2020 - 2024/D-MAX (2020-9/2024 with LED’s) (excludes 2024 facelift)
Regular price $270.43
Unit price per
One loom covering the third-generation BT-50 and D-MAX, which share a platform and front-end wiring. Plug-and-play into the factory headlight circuit with no splicing, and the three-mode smart switch mounts in a vehicle-specific dash adaptor.
Fits
- Mazda BT-50 3rd generation, MY2020–2024
- Isuzu D-MAX, 2020 – 9/2024, models with factory LED headlights
- Excludes the 2024 facelift D-MAX — those take LFDLHBST-DMAX25
MY25 facelift BT-50 owners need LFDLHBST-BT5025 instead. The dates and headlight types matter on these two utes more than most — if you are at all unsure, send us the rego and we will confirm the right loom before you order.
In the kit
- Driving light harness, including relay
- Three-mode smart rocker switch with vehicle adaptor
- Headlight adaptor to suit the vehicle
- Ignition pickup
- Cable ties and mounting hardware
- User instructions by QR code
Specifications
- 12 V operation
- 40 amp relay
- Positive or negative switching, controlled electronically
- Single moulded 8-pin connector, approximately 8 mm, plus an ignition wire through the firewall
A harness is required to install BEAST driving lights; the lights are sold separately. Auxiliary driving lights must be wired so they operate only with high beam.
