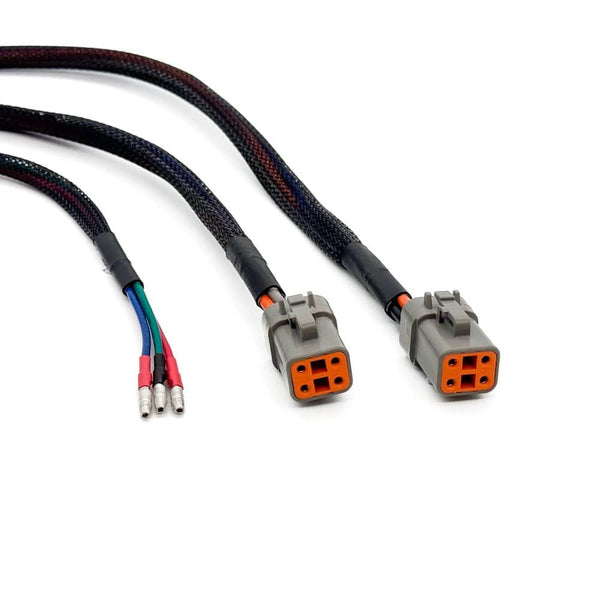

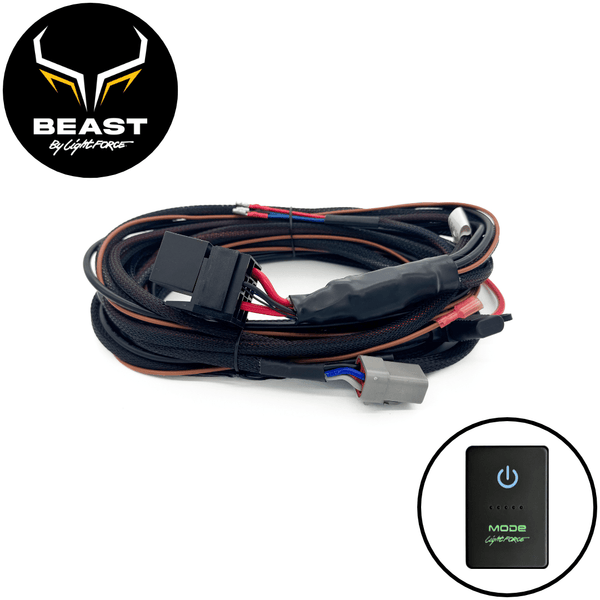

BEAST 12V Wiring Harness Kit - Universal - Includes complete loom with relay, HB3 and H4 Patch Harnesses and Universal Dash Mount Switch with TY2 Insert option

A BEAST harness is not optional — the lights will not run their three modes without one. This is the universal version, for vehicles Lightforce does not yet make a plug-and-play loom for, and for older 4WDs where you are wiring from scratch.

Everything passes through the firewall on a single 8 mm moulded 8-pin connector, which plugs straight into the BEAST three-mode smart switch. HB3 and H4 headlight adaptors are included, plus spare terminals for other configurations.

In the kit

• 12 V BEAST universal harness, including relay
• BEAST three-mode rocker switch — universal dash mount, also fits a TY2 aperture
• HB3 headlight patch harness
• H4 headlight patch harness
• Spare terminals, cable ties and mounting hardware
• User instructions

Specifications

• 12 V operation

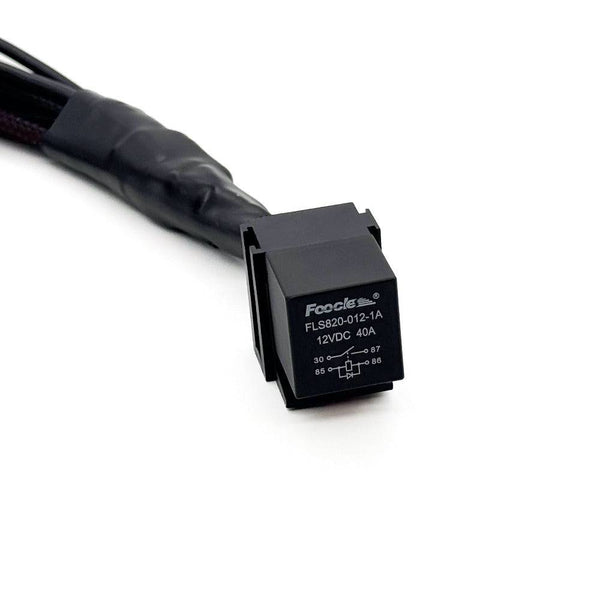

• 40 amp relay
• Positive or negative switching, controlled electronically
• Single moulded 8-pin connector, approximately 8 mm diameter, for firewall pass-through

Worth knowing before you order

On negatively switched vehicles the installation method differs, and the daytime running light function is not compatible with negative switching when using this universal harness. If your vehicle appears in our vehicle-specific harness range, that loom is the easier fit and keeps the DRL function — ask us and we will tell you which one suits.

Auxiliary driving lights must be wired so they operate only with high beam.
