BEAST 230mm and BEAST 190mm 12V Wiring Harness Kit - Suitable for Isuzu D-MAX 3rd GEN 9/2024 (onwards Facelift)
Regular price $270.43
Unit price per
The BEAST loom for the facelift D-MAX, 9/2024 onwards. Isuzu changed the front-end wiring at the facelift, so the earlier third-generation loom does not suit these utes. Plug-and-play, no splicing, with the three-mode smart switch in a vehicle-specific dash adaptor.
Fits
- Isuzu D-MAX 3rd generation, 9/2024 onwards (facelift models)
For a pre-facelift D-MAX (2020 to 9/2024 with LED headlights) use LFDLHBEAST-MBT50 instead. If your ute sits close to the changeover, send us the rego and we will confirm which loom fits before you order.

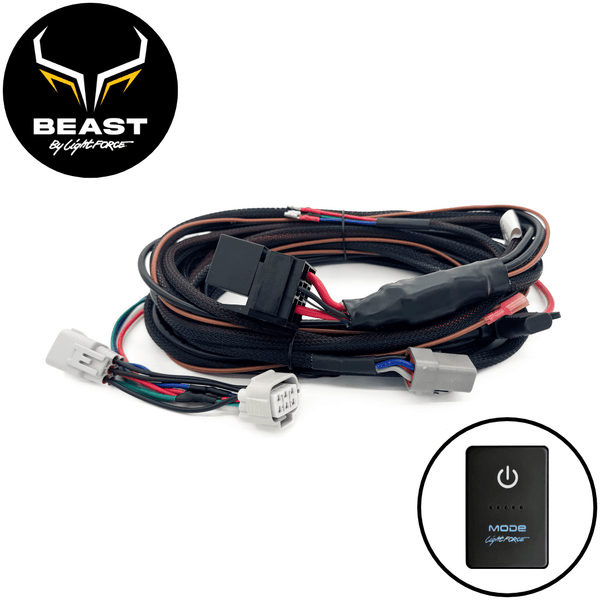

In the kit
- Driving light harness, including relay
- Three-mode smart rocker switch with vehicle adaptor
- Headlight adaptor to suit the vehicle
- Ignition pickup
- Cable ties and mounting hardware
- User instructions by QR code
Specifications
- 12 V operation
- 40 amp relay
- Positive or negative switching, controlled electronically
- Single moulded 8-pin connector, approximately 8 mm, plus an ignition wire through the firewall
A harness is required to install BEAST driving lights; the lights are sold separately. Auxiliary driving lights must be wired so they operate only with high beam.
