BEAST 230mm and BEAST 190mm 12V Wiring Harness Kit - Suitable for Toyota Landcruiser 70 Series up to 2021
Regular price $270.43
Unit price per
The BEAST loom for 70 Series Landcruisers up to 2021 — 76 wagon, 78 troopy and 79 ute. Plug-and-play into the factory headlight circuit, no splicing, with the three-mode smart switch in a Toyota adaptor and its backlight colour-matched to the dash.
Fits
- Toyota Landcruiser 70 Series, up to 2021
For an MY22 79 Series use LFDLHBEAST-LC7022, and for MY24 facelift models use LFDLHBST-LC7024. The three looms are not interchangeable — send us the rego if you want it confirmed first.

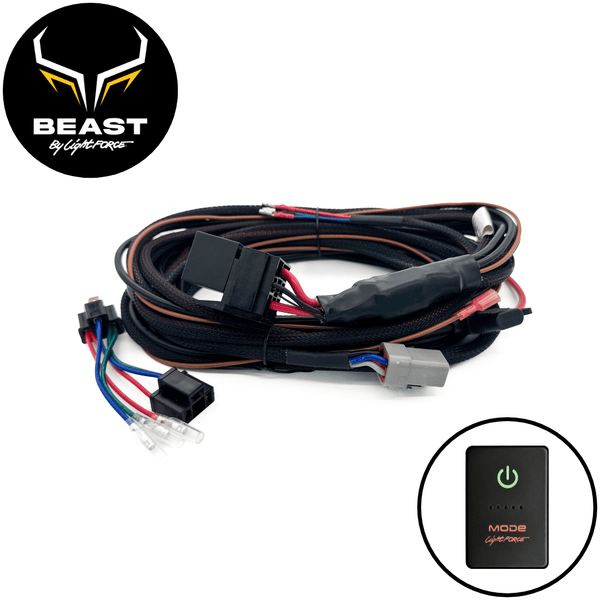

In the kit
- Driving light harness, including relay
- Three-mode smart rocker switch with Toyota adaptor
- Headlight adaptor to suit the vehicle
- Ignition pickup
- Cable ties and mounting hardware
- User instructions by QR code
Specifications
- 12 V operation
- 40 amp relay
- Positive or negative switching, controlled electronically
- Single moulded 8-pin connector, approximately 8 mm, plus an ignition wire through the firewall
A harness is required to install BEAST driving lights; the lights are sold separately. Auxiliary driving lights must be wired so they operate only with high beam.
