BEAST 230mm and BEAST 190mm 12V Wiring Harness Kit - Suitable for Toyota Landcruiser 70 Series MY24+ (Facelift Models)
Regular price $270.45
Unit price per
The BEAST loom for the MY24 facelift 70 Series — the latest wiring change, and the reason there are now three different 70 Series harnesses. Plug-and-play into the factory headlight circuit with no splicing, three-mode smart switch in a Toyota adaptor, backlight colour-matched to the dash.
Fits
- Toyota Landcruiser 70 Series, MY24 onwards, including facelift models
For earlier trucks use LFDLHBEAST-LC7022 (MY22 79 Series) or LFDLHBST-LC70 (up to 2021). The three are not interchangeable — send us the rego and we will confirm which one your truck takes.

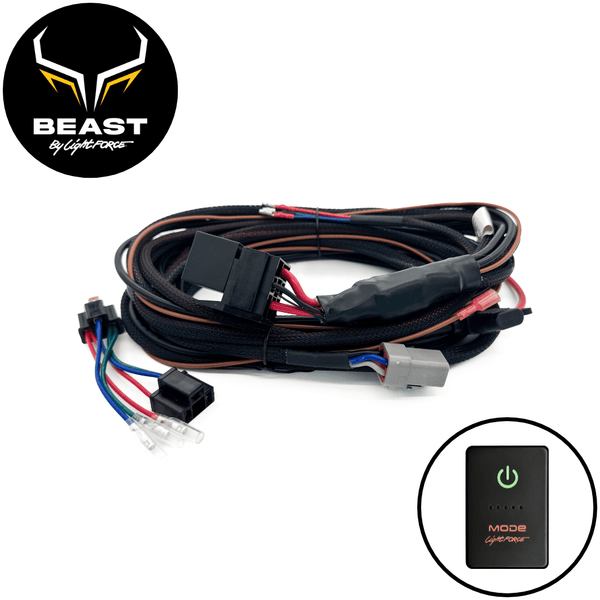

In the kit
- Driving light harness, including relay
- Three-mode smart rocker switch with Toyota adaptor
- Headlight adaptor to suit the vehicle
- Ignition pickup
- Cable ties and mounting hardware
- User instructions by QR code
Specifications
- 12 V operation
- 40 amp relay
- Positive or negative switching, controlled electronically
- Single moulded 8-pin connector, approximately 8 mm, plus an ignition wire through the firewall
A harness is required to install BEAST driving lights; the lights are sold separately. Auxiliary driving lights must be wired so they operate only with high beam.
