BEAST 230mm and BEAST 190mm 12V Wiring Harness Kit - Suitable for Isuzu MU-X (9/2020 - 2/2025)
Regular price $270.43
Unit price per
The BEAST loom for the MU-X, 9/2020 to 2/2025. Plug-and-play into the factory headlight circuit with no splicing, and the three-mode smart switch mounts in a vehicle-specific adaptor so it sits flush in the dash rather than hanging off a bracket.
Fits
- Isuzu MU-X, 9/2020 – 2/2025
D-MAX owners: your loom depends on build date and whether the ute has factory LED headlights — see LFDLHBEAST-MBT50 for 2020 to 9/2024, or LFDLHBST-DMAX25 for the 9/2024 facelift onwards.

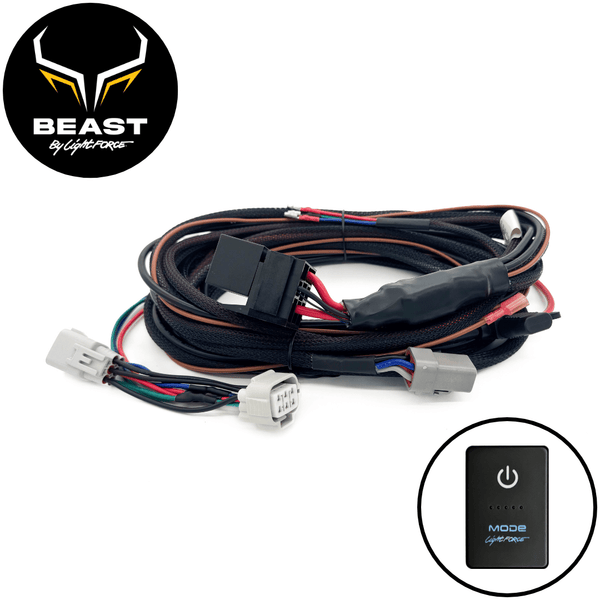

In the kit
- Driving light harness, including relay
- Three-mode smart rocker switch with vehicle adaptor
- Headlight adaptor to suit the vehicle
- Ignition pickup
- Cable ties and mounting hardware
- User instructions by QR code
Specifications
- 12 V operation
- 40 amp relay
- Positive or negative switching, controlled electronically
- Single moulded 8-pin connector, approximately 8 mm, plus an ignition wire through the firewall
A harness is required to install BEAST driving lights; the lights are sold separately. Auxiliary driving lights must be wired so they operate only with high beam.
