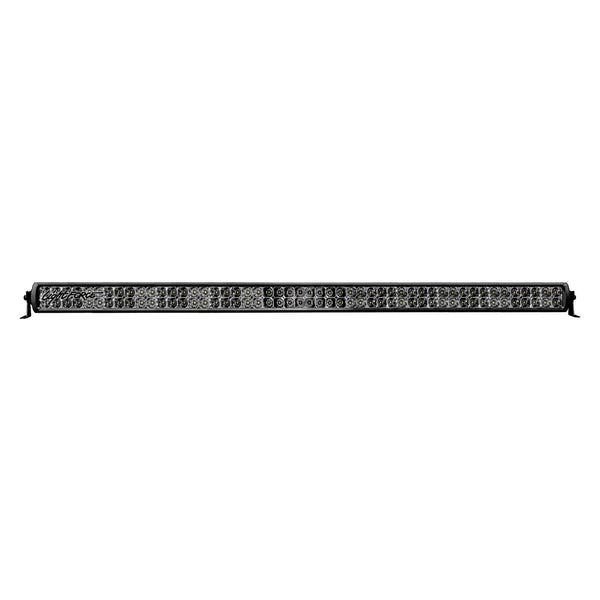

50" (1270mm) Dual Row Viper Light Bar 92 x 3W/8 x 10W
Regular price $836.79
Unit price per
The biggest light bar Lightforce make. 1,270 mm, 1 lux at 1,065 m, 17,633 effective lumens from 92 × 3 W wide LEDs plus eight 10 W long-range LEDs. Nothing else in the Viper range reaches past a kilometre.
The 308 stainless steel side brackets are the detail worth knowing — far superior to the mild steel most bars use, and on a 3.5 kg bar bolted to a moving vehicle, the brackets are what you are trusting.

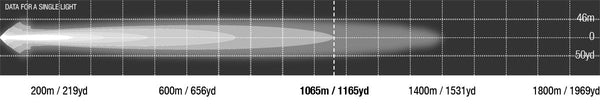

1 lux at 1,065 m
What changed with the Viper generation
- Up to 25% more distance than the previous Lightforce bars
- Up to 25% slimmer and 25% lighter
- SMART HARNESS included — with a built-in bridge rectifier for greater compatibility with modern vehicles, and an 8-pin switch connector for factory-style switch fitment
- Bonus rear slide mounts supplied with every bar, on top of the 308 stainless steel side brackets
- Up to 40% more affordable than the previous range
That harness matters more than it sounds. Late-model utes pulse the high-beam feed rather than running it as clean DC, which upsets a lot of aftermarket bars. The bridge rectifier in the Smart Harness is what lets this one sit behind a factory circuit without flicker.
Key features
- SMART HARNESS with 8-pin switch connector for easy factory switch fitment
- Osram Oslon LEDs for greater performance, contrast, and less driver fatigue
- Durable AkzoNobel powder coat finish, tested to Australian Standard AS1580, for protection against UV and salt water
- RF shielding technology reduces radio interference
- Waterproof to 1 metre with a genuine Gore breather
- Hard-coated polycarbonate lens, less prone to scratching
- Screwless front bezel, so the face stays clean and there is nothing to corrode
- 308 stainless steel side brackets — far superior to mild steel
In the box
- 1 × Viper 50 inch dual row LED light bar
- 308 stainless steel side brackets and fixings
- Rear slide mount brackets and fixings
- 1 × full Smart wiring harness
- 1 × Torx key
- User instructions
Specifications
| Length | 1,270 mm (50 inch) |
|---|---|
| 1 lux at | 1,065 m (single light) |
| Effective lumens | 17,633 lm |
| Raw lumens | 51,476 lm |
| LEDs | 92 × 3 W plus 8 × 10 W Osram Oslon |
| Current draw | 25.3 A |
| Voltage | 12 V / 24 V compatible |
| Colour temperature | 5500 K |
| Ingress protection | IP68, Gore breather |
| Weight | 3,560 g |
| Warranty | 3 years |
Where this one sits in the range
| Single row | 6″ 256 m · 10″ 372 m · 20″ 562 m · 30″ 697 m · 40″ 793 m · 50″ 878 m |
|---|---|
| Dual row | 10″ 454 m · 20″ 734 m · 30″ 896 m · 40″ 984 m · 50″ 1,065 m |
Optional accessories
- LFMOUSESW — Lightforce Mouse Switch with 8-pin connector. The harness ends in an 8-pin plug, so unless you are wiring into a factory switch you will want this
- SWADP4 — harness to single switch 8-pin adaptor
- LFLBVUMKITD — universal roof mounts for dual row bars
- ATKITLBDSM / ATKITLBDEM — anti-theft kits for the dual row slide and end mounts
Frequently asked questions
Will it fit?
1,270 mm is wider than many bull bars and most roof platforms, and at 3,560 g it is heavy enough that the mounting points matter. Measure first, and check what your rack is rated to carry. The universal dual row roof mount kit (LFLBVUMKITD) is the usual answer for a platform rack.
What about the current draw?
25.3 A is the heaviest in the Viper range — over 300 W. This is not a bar to run off a thin accessory feed. It needs properly sized cable, a relay, and correct fusing. If you are adding it to a vehicle that already has driving lights and a fridge, it is worth thinking about the whole circuit rather than this light alone.
Is the harness included?
Yes. Every Viper bar ships with the full Smart wiring harness — unlike the Lightforce driving lights, where the loom is a separate purchase.
Do I need a switch as well?
The harness terminates in an 8-pin connector. If you are not plugging into a factory-style switch, add the Mouse Switch (LFMOUSESW) or the SWADP4 adaptor, otherwise there is nothing to turn it on with.
Are the mounts included or an extra?
Included. Every bar comes with both the 308 stainless steel side brackets and the rear slide mounts. The mount SKUs we list separately are spares and anti-theft versions.
Fitting
An LED lightbar must be wired in accordance with Warrant of Fitness rules. Given the draw and the weight, this is one we would rather talk through than have arrive and not fit — send us your rego and what it is going on.
