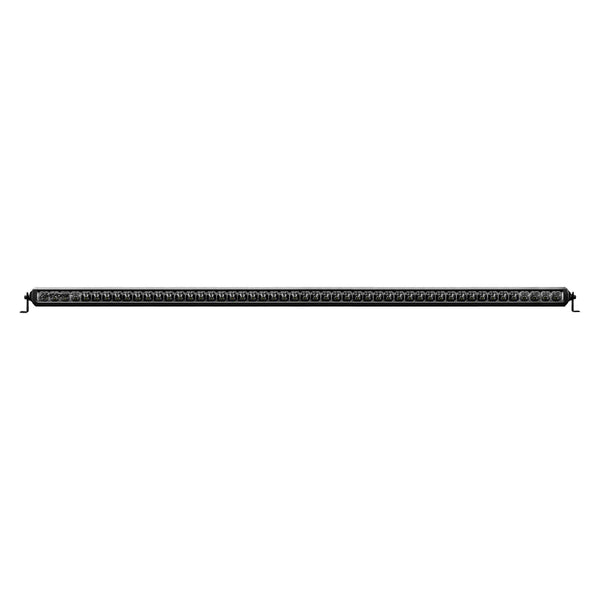

50" (1270mm) Single Row Viper Light Bar 46 x 3W/4 x 10W
Regular price $626.98
Unit price per
Go anywhere, do anything. The biggest single row Viper — 1,270 mm, 1 lux at 878 m, and 12,286 effective lumens. Uncompromising on performance and safety, with a 5500 K colour temperature chosen for less driver fatigue, glare and reflection.
As with the 30 and 40 inch, the optics are mixed: 46 × 3 W wide LEDs with 4 × 10 W long-range LEDs in the centre, so the full length throws spread while the middle carries the distance.

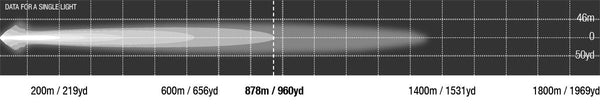

1 lux at 878 m
What changed with the Viper generation
- Up to 25% more distance than the previous Lightforce bars
- Up to 25% slimmer and 25% lighter
- SMART HARNESS included — with a built-in bridge rectifier for greater compatibility with modern vehicles, and an 8-pin switch connector for factory-style switch fitment
- Bonus rear slide mounts supplied with every bar, on top of the stainless steel side brackets
- Up to 40% more affordable than the previous range
That harness matters more than it sounds. Late-model utes pulse the high-beam feed rather than running it as clean DC, which upsets a lot of aftermarket bars. The bridge rectifier in the Smart Harness is what lets this one sit behind a factory circuit without flicker.
Key features
- SMART HARNESS with 8-pin switch connector for easy factory switch fitment
- Osram Oslon LEDs for greater performance, contrast, and less driver fatigue
- Durable AkzoNobel powder coat finish, tested to Australian Standard AS1580, for protection against UV and salt water
- RF shielding technology reduces radio interference
- Waterproof to 1 metre with a genuine Gore breather
- Screwless front bezel, so the face stays clean and there is nothing to corrode

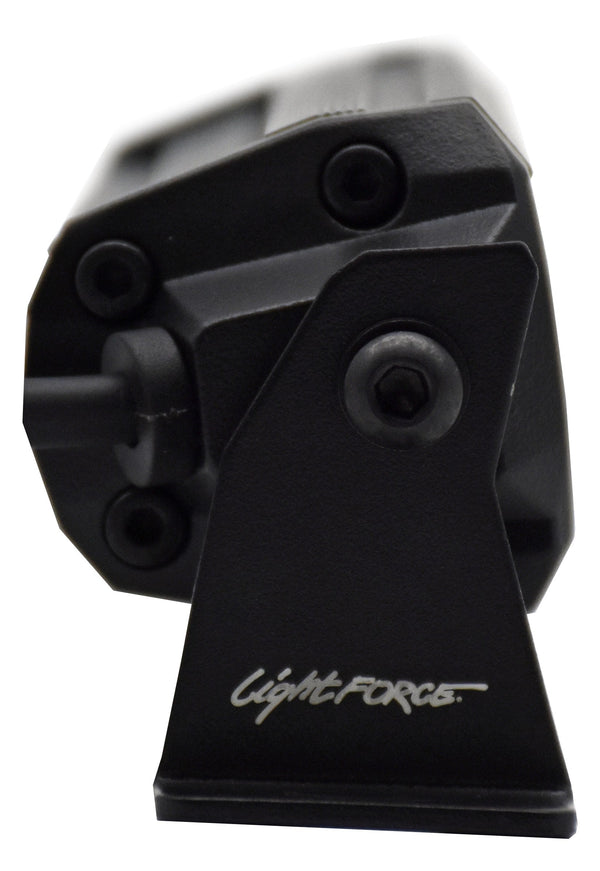

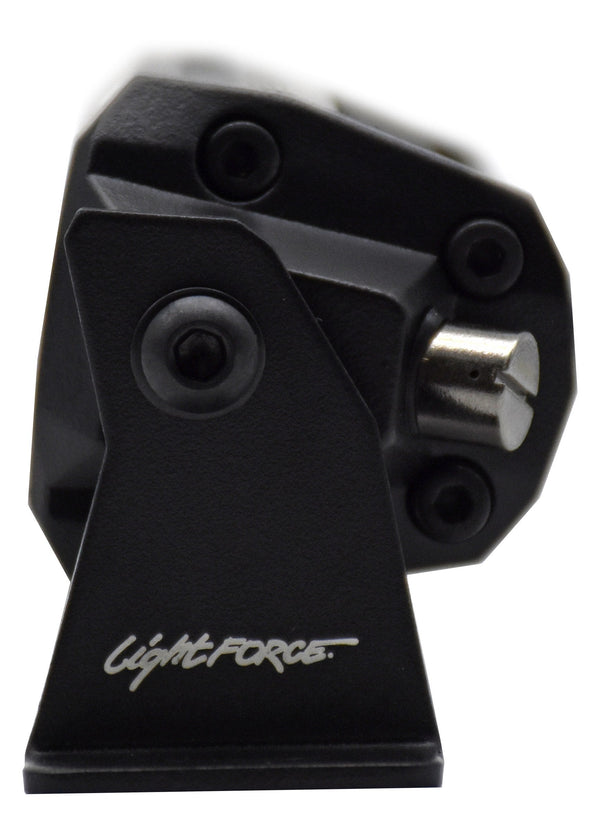

- Lightweight slimline housing with stainless steel side brackets
- Polycarbonate lens
In the box
- 1 × Viper 50 inch single row LED light bar
- Stainless steel side brackets and fixings
- Rear slide mount brackets and fixings
- 1 × full Smart wiring harness
- 1 × Torx key
- User instructions
Specifications
| Length | 1,270 mm (50 inch) |
|---|---|
| 1 lux at | 878 m (single light) |
| Effective lumens | 12,286 lm |
| Raw lumens | 25,738 lm |
| LEDs | 46 × 3 W plus 4 × 10 W Osram Oslon |
| Current draw | 15.6 A |
| Voltage | 12 V / 24 V compatible |
| Colour temperature | 5500 K |
| Ingress protection | IP68, Gore breather |
| Weight | 2,666 g |
| Warranty | 3 years |
Where this one sits in the range
| Single row | 6″ 256 m · 10″ 372 m · 20″ 562 m · 30″ 697 m · 40″ 793 m · 50″ 878 m |
|---|---|
| Dual row | 10″ 454 m · 20″ 734 m · 30″ 896 m · 40″ 984 m · 50″ 1,065 m |
This is the longest single row bar in the range, but not the furthest-reaching Viper. The 30 inch dual row already beats it at 896 m, and the 50 inch dual row reaches 1,065 m. Single row buys you a slimmer profile; dual row buys you reach.
Optional accessories
- LFMOUSESW — Lightforce Mouse Switch with 8-pin connector. The harness ends in an 8-pin plug, so unless you are wiring into a factory switch you will want this
- SWADP4 — harness to single switch 8-pin adaptor
- LFLBVUMKITS — universal roof mounts for single row bars
- ATKITLBSSM / ATKITLBSEM — anti-theft kits for the single row slide and end mounts
Frequently asked questions
Is the harness included?
Yes. Every Viper bar ships with the full Smart wiring harness — unlike the Lightforce driving lights, where the loom is a separate purchase.
Do I need a switch as well?
The harness terminates in an 8-pin connector. If you are not plugging into a factory-style switch, add the Mouse Switch (LFMOUSESW) or the SWADP4 adaptor, otherwise there is nothing to turn it on with.
Are the mounts included or an extra?
Included. Every bar comes with both the stainless steel side brackets and the rear slide mounts. The mount SKUs we list separately are spares and anti-theft versions.
Will it fit?
1,270 mm is wider than many bull bars and most roof platforms. Measure before you order. The universal roof mount kit (LFLBVUMKITS) is the usual answer for a platform rack.
Anything to watch with the wiring?
At 15.6 A this is the heaviest draw in the Viper range. It wants properly sized cable and fusing, and it is worth thinking about where the load sits on your circuit.
Fitting
An LED lightbar must be wired in accordance with Warrant of Fitness rules. Send us your rego and we will talk it through before you order.
